POLEAS DE CINCO RUEDAS
025-5 - CARRUCOLE A CINQUE RUOTE
025-5 - CARRUCOLE A CINQUE RUOTE

025-5

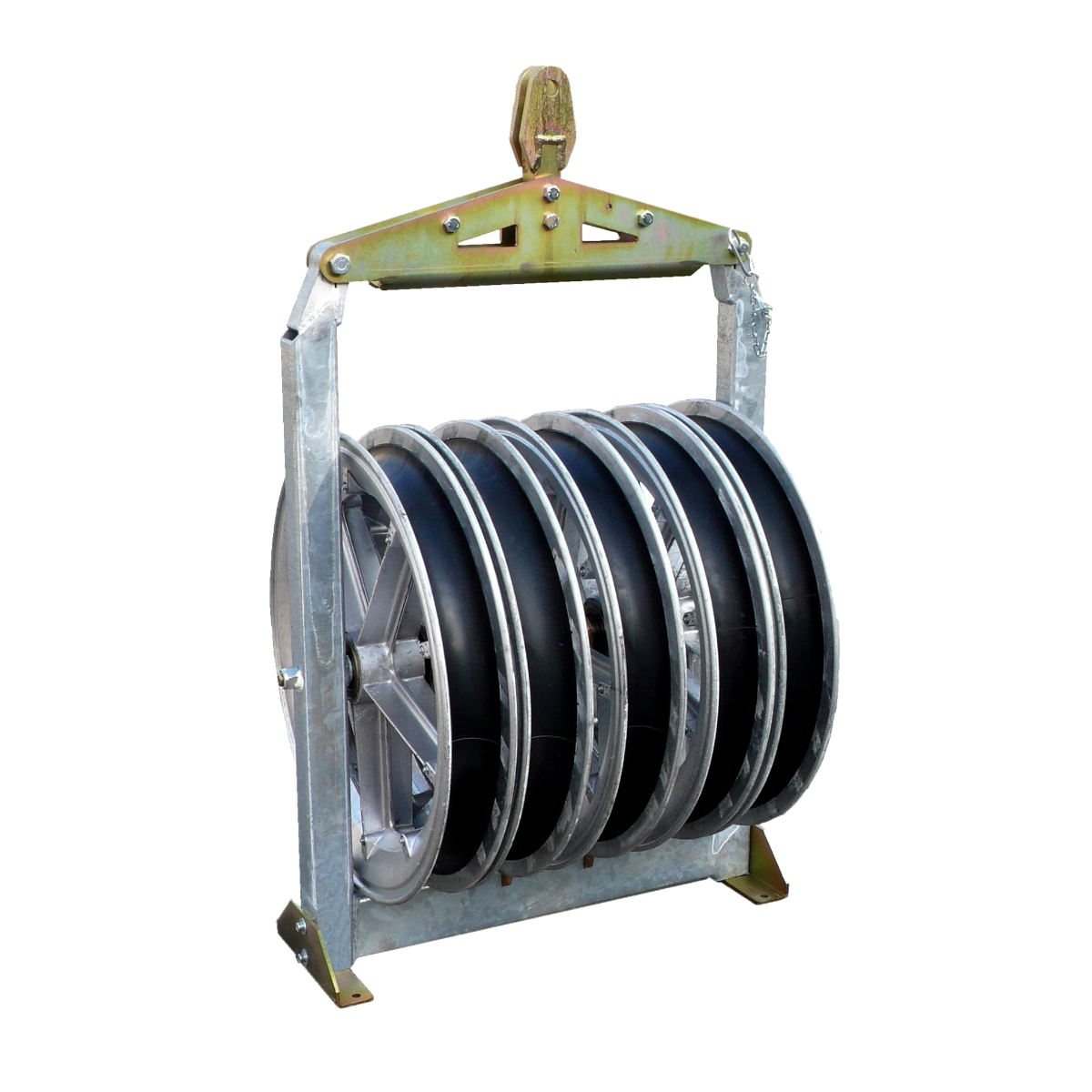

POLEAS DE CINCO RUEDAS

VERSIÓN FIJA
Para el tendido de cuatro conductores.
Ruedas en aluminio montadas sobre cojinetes con sectores de revestimiento en nylon (o en aluminio) intercambiables para la protección de los conductores.
Bastidor en acero galvanizado con sistema de toma a horquilla orientable al paso de los 90°.

Disponibles a pedido:
-Sistema de puesta a tierra (Mod. 025/…/…MT) con cable aislado en cobre de 50mm² L=6m
(otras longitudes a pedido) con abrazadera para la conexión a tierra;
– Sectores en nylon intercambiables de repuesto Mod. NYR/… ;
– Sectores en aluminio intercambiables de repuesto Mod. ALR/… ;
– Diferentes distancias entre las ruedas.

SKU: 025-5---carrucole-a-cinque-ruote Categorías: EQUIPO Y ACCESORIOS PARA TENDIDO DE CABLES AÉREOS, POLEAS DE TENDIDO
  • Descripción
  • Valoraciones (0)

Descripción

MODELO Dimensiones (mm) Carga de trabajo Peso
A B C D E F G H I L M kN kg
025/5/6 620 500 68 26 25 1378 632 100 145 721 300 40 140
025/3/2 755 650 68 26 25 1513 632 100 145 721 300 60 160
025/3/2L 775 650 95 26 25 1553 673 145 175 901 300 60 190
025/4/4 890 800 68 26 25 1648 633 100 145 725 500 60 175
025/4/4L 910 800 95 26 25 1688 673 145 175 905 500 60 247
025/6/4L 1110 1000 95 26 25 1893 668 145 175 917 500 66 280
025/7/4L 1350 1200 130 26 25 2133 671 185 222 1131 500 100 545
