Descrizione

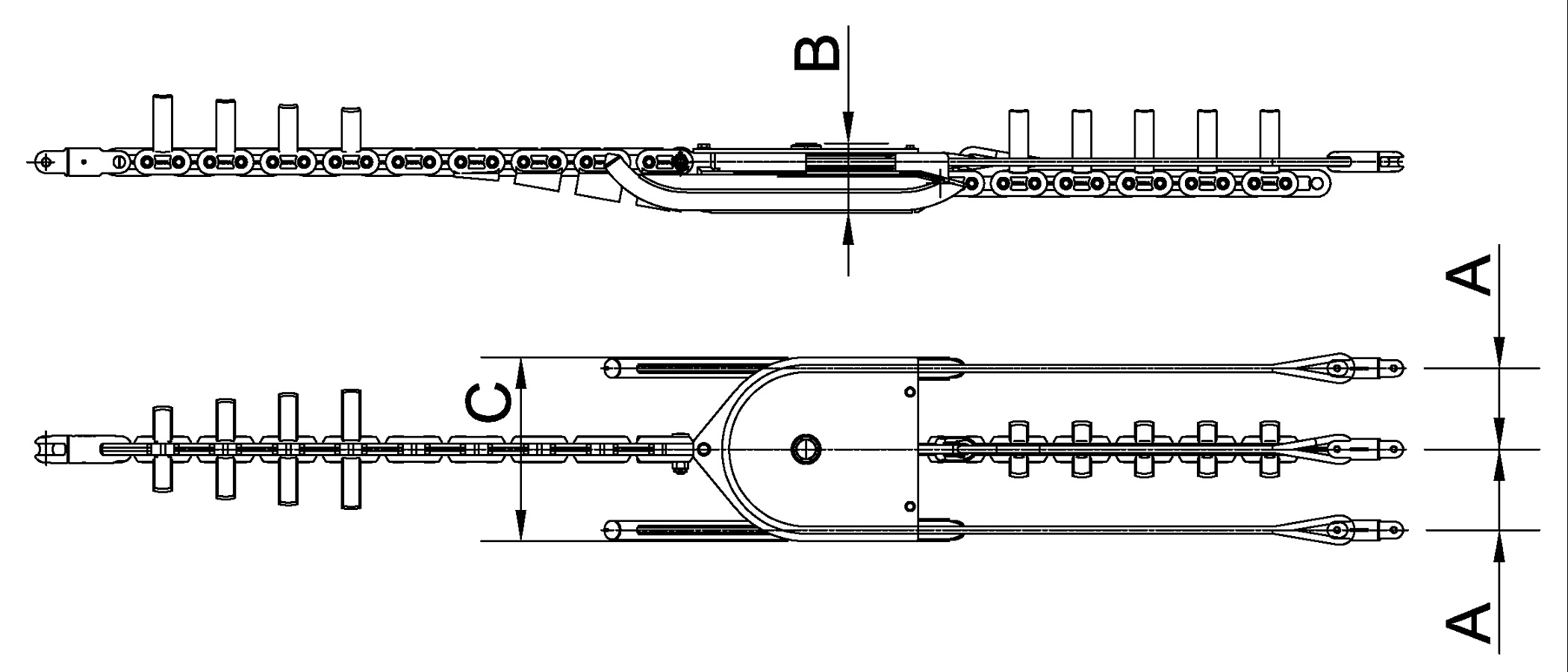

| MODELLO | Conduttori | Dimensioni (mm) | N° giunti girevoli | Lunghezza fune | Per carrucole | Carico di lavoro |
Peso | |||
| N° | A | B | C | 250/BCR | 250/DR | Ø16 mm* | Mod. | kN | kg | |
| C0 B1 | 2 | 145 | 139 | 340 | 2 | 1 | 1x30m | 025/5/ – 025/5/5SC – 025/5/5E 025/3/1 – 025/3/1SC – 025/3/1E 025/4/3 – 025/4/3SC – 025/4/3E |
100 | 120 |
| C0 T1 | 3 | 145 | 139 | 340 | 3 | 1 | 1x30m ÷ 1x15m | 100 | 140 | |
| C0 B2 | 2 | 180 | 154 | 410 | 2 | 1 | 1x30m | 025/3/1L – 025/3/1LSC – 025/3/1LE 025/4/3L – 025/4/3LSC – 025/4/3LE 025/6/3L – 025/6/3LSC |
100 | 145 |
| C0 T2 | 3 | 180 | 154 | 410 | 3 | 1 | 1x30m ÷ 1x15m | 100 | 160 | |
| C0 B3 | 2 | 222 | 160 | 494 | 2 | 1 | 1x30m | 025/7/1L – 025/7/3L | 100 | 175 |
| C0 T3 | 3 | 222 | 160 | 494 | 3 | 1 | 1x30m ÷ 1x15m | 100 | 195 | |
