Descrizione

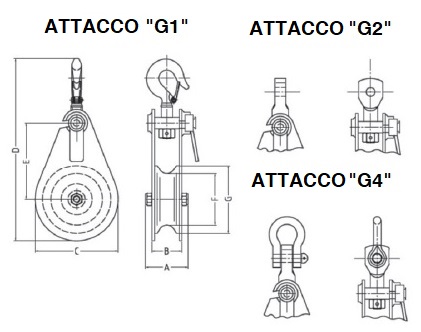

| MODELLO | Dimensioni (mm) | Carico di lavoro |
Peso | ||||||||||
| A | B | C | D | E | F | G | H | I | L | M | kN | kg | |
| 020/L/015/LL | 72 | 47 | 126 | 303 | 122 | 84 | 120 | 20 | 20 | 16 | 16 | 3 | 1.5 |
| 020/L/045/LL | 75 | 51 | 126 | 318 | 122 | 84 | 120 | 23 | 20 | 18 | 18 | 9 | 2 |
| 020/L/090/LL | 85 | 59 | 126 | 351 | 130 | 84 | 120 | 26 | 20 | 24 | 20 | 18 | 3.25 |
| 020/L/150/LL | 99 | 73 | 160 | 425 | 165 | 110 | 150 | 32 | 24 | 28 | 24 | 30 | 4.75 |
